Advanced HVAC Heat Load Calculation: A Manual-J Lite Guide

Performing an HVAC heat load calculation is one of the most important steps in determining the correct heating and cooling capacity for a home.

Whether you are replacing an existing HVAC unit, evaluating energy efficiency upgrades, or planning a remodel, an accurate load calculation ensures the system is properly sized — not too big, not too small. Oversized units short-cycle, waste energy, and reduce comfort, while undersized systems struggle to keep up during extreme temperatures. With modern materials, higher insulation levels, and more complex home layouts than ever, a scientific, physics-based approach to load calculation has become essential.

This comprehensive guide explains how heat flows in and out of a structure, breaks down the components of heating and cooling loads, clarifies the role of infiltration, insulation, ductwork, and window exposure, and shows how a carefully structured calculator (like the one on this page) can deliver surprisingly precise results without needing expensive professional software. By the end of this article, you’ll fully understand the factors that drive HVAC performance and how a modern HVAC heat load calculation works from start to finish.

What Is an HVAC Heat Load Calculation?

An HVAC heat load calculation determines how much heating or cooling a home requires under peak conditions. For heating, it measures how fast the home loses heat to the outdoors; for cooling, it measures how fast heat enters the home from sunlight, air leaks, appliances, and warm external surfaces. The goal is to match system capacity to actual demand.

A professional load calculation (often called Manual-J) involves:

• Wall, ceiling, and floor conduction
• Window U-values and solar gain
• Infiltration and ventilation loads
• Internal heat gains from occupants and appliances

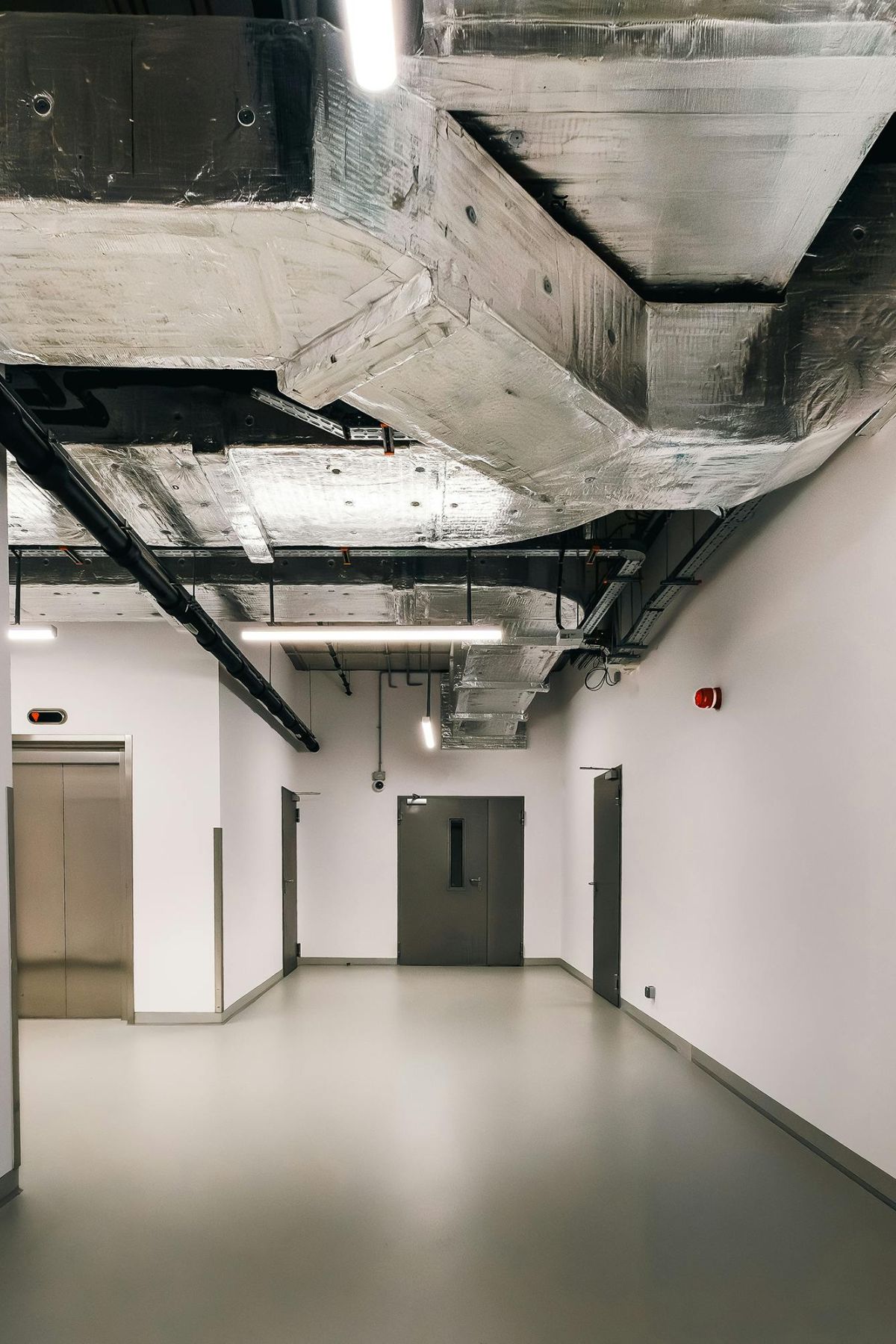

• Duct losses, duct insulation, and duct location
• Foundation type and basement/crawlspace conditions
• Climate-specific outdoor design temperatures
• Sensible vs. latent cooling loads

A high-quality HVAC heat load calculation produces two primary outputs:

1. BTU/hr heating load
2. BTU/hr cooling load (sensible + latent)

These values determine equipment size, airflow requirements, duct sizing, and the total system configuration.

Why Accuracy Matters for Heating and Cooling Systems

The sizing rules that many older contractors still rely on — such as “500 square feet per ton” — are outdated. Modern homes vary enormously in insulation levels, window quality, air tightness, and ceiling height. A poorly sized system leads to:

• Uneven temperatures
• High energy bills
• Excess humidity in summer
• Frequent cycling
• Reduced equipment lifespan
• Noise and comfort problems

A precise HVAC heat load calculation prevents these issues by basing system sizing on scientific measurements and real-world physics rather than rough guesses.

Correct sizing ensures:

• Stable temperatures year-round
• Balanced airflow across all rooms
• Reduced HVAC wear and tear
• Optimal humidity control
• Better indoor comfort
• Lower energy consumption

For homeowners planning upgrades or replacements, this calculation is arguably the most important step in the entire process.

How Heat Moves Through a Home

Every HVAC heat load calculation is based on core thermal principles. Heat naturally flows from warmer zones to cooler ones. The rate of heat transfer depends on:

• Temperature difference (ΔT)
• Surface area
• Insulation level
• Air leakage
• Solar exposure

Understanding these pathways is the key to accurate load measurement.

A. Conduction Through Walls

Walls lose or gain heat depending on:

• Their R-value
• How much of the wall is exposed to outdoors
• The indoor and outdoor temperatures
• Exterior wall area

The basic conduction formula is:

Heat loss = (1 ÷ R-value) × Wall area × ΔT

B. Ceilings and Roof Assemblies

Ceilings play a major role in both heating and cooling load:

• Flat ceilings typically have good insulation
• Vaulted ceilings lose more heat
• Cathedral ceilings can be a significant weak point

The calculator includes multipliers for each ceiling type.

C. Window Heat Loss and Solar Gain

Windows influence load in two ways:

1. Conduction — heat passes through glass
2. Solar gain — sunlight entering through the glass adds cooling load

Orientation matters:

• North: minimal solar gain
• East: morning sun
• South: heavy midday gain
• West: intense late-afternoon heat

D. Infiltration Load (ACH)

Infiltration is the air that leaks into and out of a home.

Formula:

Infiltration load = 1.08 × CFM × ΔT

Air changes per hour (ACH) vary by house tightness:

• Older/leaky homes: 0.75
• Typical homes: 0.50
• Modern tight homes: 0.25–0.35

Infiltration affects both sensible and latent cooling loads.

E. Internal Heat Sources

People and appliances add heat:

• Person: ~230 BTU/hr
• Appliances: watts × 3.412 = BTU/hr

Kitchens can contribute substantial heat to cooling load.

F. Foundation and Floor Losses

Heat loss through the floor depends on:

• Crawlspace conditions
• Basement exposure
• Slab insulation
• Perimeter heat transfer

Perimeter-based foundation models increase accuracy over simple area-based assumptions.

Sensible vs. Latent Cooling Loads

Cooling systems do two jobs:

1. Sensible cooling

Reduces air temperature.

2. Latent cooling

Removes moisture.

Without including latent load in the HVAC heat load calculation, the AC may cool the home but fail to control humidity — leaving the air sticky.

Latent load increases with:

• High outdoor humidity
• High infiltration
• More occupants
• Larger window areas

A complete calculation must separate the two.

What Inputs You Need for an Accurate Load Calculation

To use an advanced load calculator, you’ll need:

Home Environment

• Indoor heating setpoint
• Indoor cooling setpoint
• Outdoor design heating temperature
• Outdoor design cooling temperature
• Humidity level

Building Envelope

• Wall R-value
• Ceiling R-value
• Floor type
• Foundation type
• Exposed exterior wall percentage

Fenestration (Windows & Doors)

• Total area
• Orientation
• U-value
• Shading factor

Air Leakage

• Air changes per hour (ACH)
• Duct leakage
• Duct location (attic, crawlspace, interior)

Internal Loads

• Number of people
• Appliance wattage
• Lighting loads (optional)

Geometry

• Room length, width, height
• Total square footage
• Room-by-room breakdown

This information generates a highly accurate HVAC heat load calculation that can guide equipment selection and duct design.

Step-by-Step Breakdown of the Calculation Process

Let’s walk through how a modern physics-based calculator performs the complete process.

Step 1 — Compute all room areas

• Wall area
• Ceiling area
• Window area
• Floor area
• Exposed wall percentages

Step 2 — Apply conduction formulas

Each surface uses:

Heat = (1 ÷ R-value) × Area × ΔT

Step 3 — Add solar gains

Window solar heat = Solar factor × Window area × shading factor

Step 4 — Calculate infiltration

CFM = (room volume × ACH) ÷ 60
Heating or cooling infiltration = 1.08 × CFM × ΔT

Step 5 — Include internal loads

People = 230 BTU/hr × occupancy
Appliances = watts × 3.412

Step 6 — Separate sensible and latent cooling

Latent = (infiltration + people load) × humidity factor

Step 7 — Add foundation losses

Slab = perimeter × slab factor
Crawlspace = perimeter × crawl factor
Basement = perimeter × basement factor

Step 8 — Combine all loads

Total BTU/hr = conduction + infiltration + internal + solar + latent (cooling)

This is the foundation of a complete HVAC heat load calculation.

Converting BTU/hr Into Equipment Size

Once total BTU/hr is known:

Heating Equipment

Heating load × safety factor (typically 1.20)

Cooling Equipment

Cooling load ÷ 12,000 = tons

For example:
36,000 BTU/hr cooling ≈ 3 tons

The calculator also estimates:

• Required CFM
• Register count
• Trunk duct diameter

This bridges Manual-J (load) with aspects of Manual-D (duct design).

Benefits of Performing an HVAC Heat Load Calculation Before Replacing Equipment

✔ Correct equipment sizing

No more oversized or undersized systems.

✔ Improved comfort

Even temperatures across every room.

✔ Lower energy bills

Equipment runs efficiently and avoids short-cycling.

✔ Longer equipment lifespan

HVAC components are not overworked.

✔ Better humidity control

A properly sized AC manages moisture effectively.

✔ Better airflow distribution

A complete calculation corrects room imbalances.

✔ Increased home value

Professionally sized systems are more appealing to buyers.

✔ Informed upgrade decisions

You can evaluate insulation improvements and window replacements based on real numbers.

Limitations Compared to Full Manual-J Software

Even advanced calculators have boundaries.

They typically do not include:

• Time-of-day cooling load temperature differences (CLTD)
• Interior partition wall load balancing
• Real-time weather modeling
• Manufacturer blower curves
• Multi-zone load interactions
• Ventilation system heat recovery calculations

However, for homeowners replacing equipment or comparing insulation strategies, these limitations are minor. A high-quality HVAC heat load calculation still delivers actionable accuracy and avoids the sizing mistakes common in rule-of-thumb methods.

When You Should Still Hire a Professional

A full Manual-J, Manual-D, and Manual-S should be performed when:

• Building a new home
• Adding a second story
• Installing geothermal or ducted heat pumps
• Doing major remodeling
• Creating multi-zone systems
• Evaluating whole-house ventilation

In these situations, complex details matter — especially duct sizing and airflow balancing.

But for most homeowners, the structured calculator above is more than accurate enough.

Conclusion

As building codes evolve, insulation improves, and energy costs rise, getting the right heating and cooling capacity is more critical than ever. An HVAC heat load calculation takes the guesswork out of system sizing by analyzing:

• Insulation
• Window exposure
• Room geometry
• Air leakage
• Duct conditions
• Foundation type
• Climate temperatures
• Moisture loads

This science-based approach ensures that your home will stay comfortable year-round, that equipment lasts longer, and that your energy bills stay under control. Whether you’re upgrading your furnace, installing a heat pump, or planning for better cooling performance, a precise load calculation is the single best investment in comfort and efficiency you can make.
