Free HVAC Duct Sizing Calculator

HVAC Duct Sizing is a critical component of designing an efficient heating, ventilation, and air conditioning system.

Whether you’re outfitting a new building or upgrading an older system, properly sized ductwork ensures that conditioned air is delivered effectively to every room without excess noise, pressure loss, or energy waste. Unfortunately, many systems suffer from poor performance not because of the HVAC unit itself, but due to ductwork that’s too small, too large, or improperly laid out.

Understanding how HVAC duct sizing works allows homeowners and professionals alike to avoid common pitfalls and achieve better temperature control, reduced utility bills, and increased system longevity. This guide will walk you through what duct sizing is, why it matters, the factors that influence it, and how to calculate it accurately — whether you’re using manual methods or an automated calculator.

Proper duct sizing doesn’t just impact comfort — it can also affect your indoor air quality, equipment wear-and-tear, and long-term energy costs. If airflow is insufficient due to undersized ducts, it can lead to pressure imbalances and even premature failure of your HVAC system. Oversized ducts, on the other hand, can lead to uneven temperatures and higher installation costs.

By the end of this article, you’ll not only understand the theory behind HVAC duct sizing but also feel confident evaluating or planning your own system layout.

What Is HVAC Duct Sizing?

HVAC duct sizing refers to the process of determining the appropriate dimensions of the air ducts that distribute heated or cooled air throughout a building. It’s a foundational aspect of HVAC design because the size of the ducts directly impacts airflow (measured in cubic feet per minute, or CFM), system efficiency, comfort, and energy usage.

In a central HVAC system, the air handler or furnace produces airflow that must be distributed evenly to each room. Ducts act as the highways for this air. If those highways are too narrow (undersized), airflow will be restricted, causing the system to work harder and potentially overheat. If they’re too wide (oversized), air velocity may drop too low, leading to poor air mixing, inefficient heating or cooling, and temperature stratification.

At the core of HVAC duct sizing is CFM — the volume of air that needs to be delivered to a space per minute. Each room in a house or building requires a specific amount of airflow based on its size, insulation, number of windows, and other factors. The total system CFM is the sum of all room requirements.

Another critical concept in duct sizing is static pressure, which is the resistance the air faces as it moves through the ductwork. Duct length, fittings (like elbows and transitions), and surface roughness all add to this resistance. The duct system must be designed to deliver the required CFM without exceeding the allowable static pressure for the HVAC unit.

HVAC professionals typically rely on tools like duct sizing charts, friction loss tables, and digital ductulator apps to calculate appropriate duct sizes. Some even use detailed software that incorporates load calculations (Manual J), duct design (Manual D), and equipment selection (Manual S) to ensure an optimized system.

In short, HVAC duct sizing is about balancing three things:

• The volume of air each room needs (CFM)
• The speed at which it travels (FPM — feet per minute)
• The resistance it faces (friction rate/static pressure)

Getting this balance right ensures that each room receives the right amount of conditioned air — quietly, efficiently, and without overburdening your HVAC equipment.

Why Proper Duct Sizing Matters

HVAC duct sizing plays a crucial role in the overall performance, efficiency, and comfort level of any heating and cooling system. A well-designed duct system ensures that each room receives the right amount of conditioned air, while an improperly sized system can cause a cascade of problems—from uncomfortable temperatures to higher energy bills and premature equipment failure.

One of the most common issues caused by incorrect duct sizing is restricted airflow. If ducts are too small for the required airflow (CFM), the HVAC blower must work harder to push air through the system. This increases the total static pressure, reduces system efficiency, and often leads to inadequate heating or cooling in rooms furthest from the air handler. The system may short-cycle, overheat, or freeze due to airflow bottlenecks.

On the other hand, oversized ducts may sound like a safe bet, but they come with their own problems. When ducts are too large, air velocity drops significantly. This can lead to uneven air distribution, rooms that feel stagnant or under-conditioned, and poor air mixing. It also increases material costs and takes up more physical space—posing challenges in retrofits or tight ceiling cavities.

Improper HVAC duct sizing can also contribute to excessive noise, especially when air is forced through small or restrictive ducts at high velocity. Whistling, popping, or “whooshing” sounds are common signs of a system under strain.

Furthermore, an imbalanced system can cause pressure differences between rooms. This not only reduces comfort but can draw in unconditioned outdoor air through cracks and leaks, undermining energy efficiency and potentially affecting indoor air quality.

From a cost perspective, an incorrectly sized duct system can waste significant energy. According to the U.S. Department of Energy, leaky or inefficient duct systems can reduce heating and cooling system efficiency by as much as 20%. Ducts that are the wrong size exacerbate this issue by making the system work harder, consuming more electricity or gas.

Ultimately, proper HVAC duct sizing is not just about comfort—it’s about creating a system that’s efficient, quiet, and long-lasting. Whether you’re building a new home or updating an old system, investing time in accurate duct sizing will pay off in both performance and lower utility bills.

Key Factors That Affect Duct Sizing

HVAC duct sizing is not a one-size-fits-all process. Several key variables must be considered to ensure that the ducts deliver the correct amount of air at the right speed with minimal resistance. These factors interact with one another and must be balanced carefully to design an efficient and functional duct system.

1. Airflow Requirements (CFM)

At the heart of HVAC duct sizing is the cubic feet per minute (CFM) of air required by each room. This value is determined by performing a Manual J load calculation, which accounts for room size, insulation, windows, occupancy, and equipment. The total system CFM is the sum of all the room CFM values.

2. Duct Velocity (FPM)

Measured in feet per minute (FPM), air velocity is how fast air travels through the ducts. While high velocities reduce duct sizes, they can lead to excessive noise and friction loss. Recommended velocity ranges are:

• Main supply trunks (residential): 700–900 FPM
• Branch ducts: 500–700 FPM
• Return ducts: 600–800 FPM

3. Static Pressure and Friction Loss

As air moves through ductwork, it encounters friction from the duct walls, fittings, and turns. The friction rate (measured in inches of water gauge per 100 feet) represents the resistance to airflow. Systems must be designed to stay within the Total External Static Pressure (TESP) limits set by the equipment manufacturer, typically around 0.5 in. w.g. for residential systems.

4. Duct Material

Different duct materials have different internal surface roughness, which affects friction:

• Galvanized steel: smooth, low friction
• Aluminum: lightweight, moderate friction
• Flex duct: high friction, not ideal for long runs
• Duct board (fiberglass): insulated but higher friction

Material selection influences both friction loss and insulation needs.

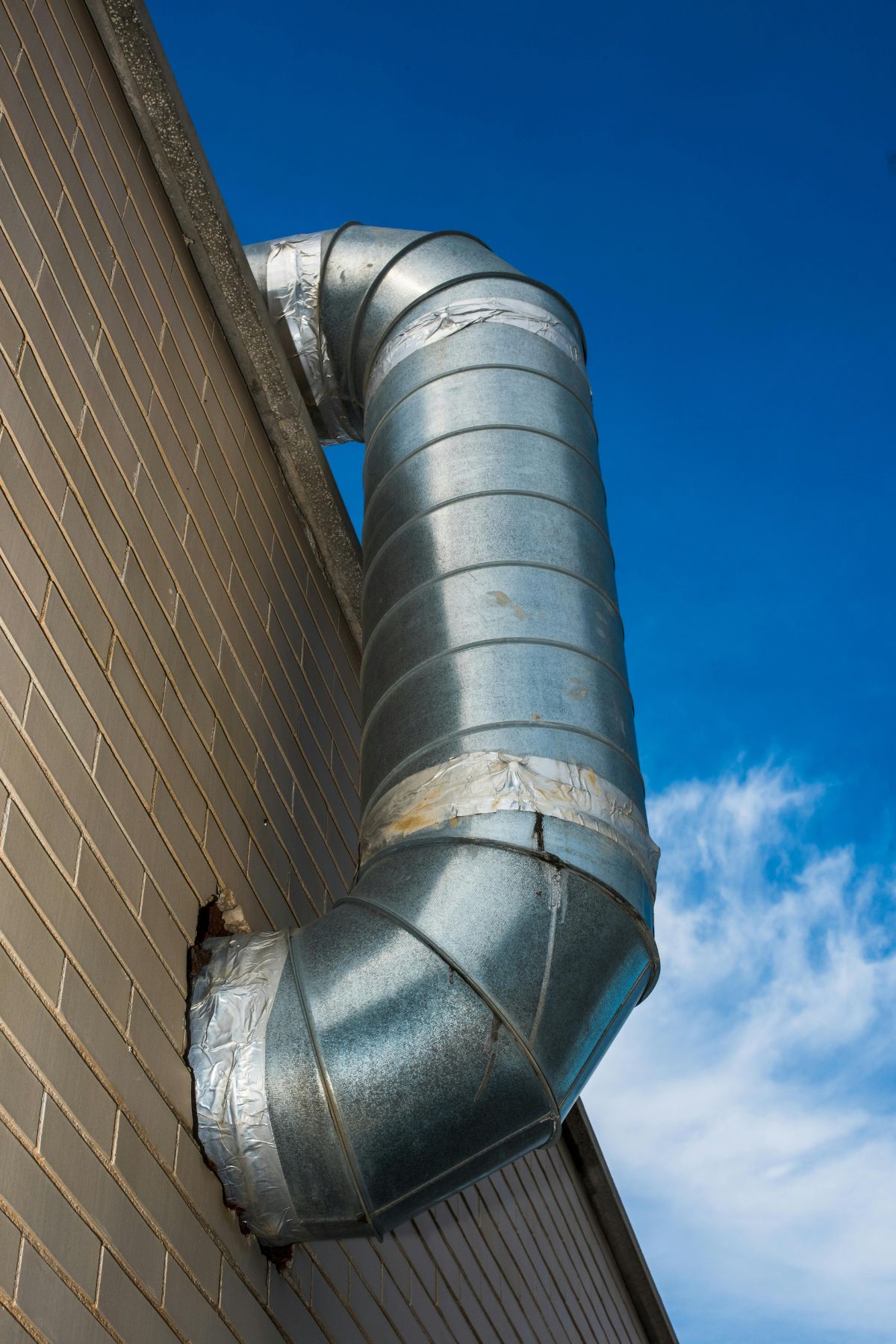

5. Duct Shape

• Round ducts are most efficient and have the least surface area per volume of air.
• Rectangular ducts are often used for space constraints but require de-rating due to higher surface area and friction.
• Oval ducts are a compromise between space-saving and efficiency.

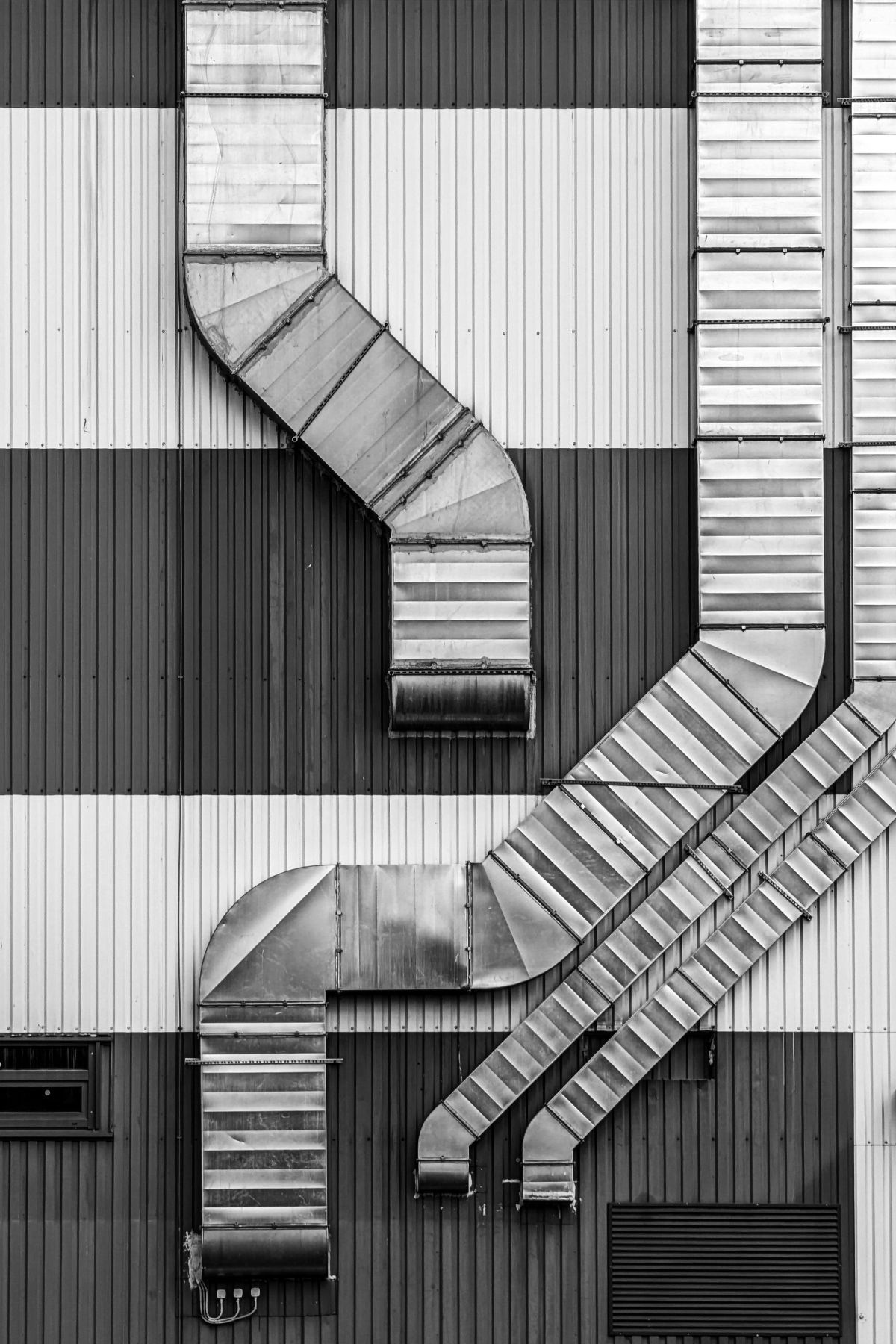

6. Duct Length and Fittings

Longer ducts increase friction loss. So do bends and fittings. Each fitting has an equivalent length, which is added to the actual duct length to calculate the total effective duct length. Common fittings include:

• 90° elbows
• 45° elbows
• Wyes
• Transitions
• Dampers

These must all be factored in to accurately assess pressure losses.

7. System Design (Zoned, VAV, Constant Volume)

Zoned systems or Variable Air Volume (VAV) systems introduce added complexity. Each zone or branch may require its own duct sizing, dampers, or dedicated trunk lines. Constant volume systems are simpler but must still consider airflow balance.

8. Altitude

At higher elevations, air is less dense. This affects how much volume is needed to deliver the same amount of mass airflow, slightly altering duct sizing requirements.

Understanding how these factors interrelate helps HVAC designers create systems that are efficient, quiet, and effective under real-world conditions.

How to Use an HVAC Duct Sizing Calculator

HVAC duct sizing can be made significantly easier with the help of a well-designed duct sizing calculator. These tools help homeowners, contractors, and engineers quickly estimate the correct duct dimensions based on key system variables without needing to manually consult friction charts or perform complex equations.

Step-by-Step Guide:

1. Input Required Airflow (CFM)

Start by entering the cubic feet per minute (CFM) of airflow needed for a specific room or zone. This is usually obtained from a Manual J load calculation, which accounts for the room’s heat gain/loss.

2. Choose Duct Shape and Material

Select the duct shape (round or rectangular) and the duct material (e.g., galvanized steel, flex duct, duct board). These affect friction loss and sizing.

• Round ducts are more efficient but may not always fit in tight spaces.
• Flexible ducts require larger sizes to overcome higher friction.

3. Set Desired Air Velocity (FPM)

Enter the target air velocity in feet per minute (FPM). Common residential ranges:

• Main trunk: 700–900 FPM
• Branches: 500–700 FPM

A well-designed calculator will use this to compute the required duct cross-sectional area and corresponding diameter or side lengths.

4. Enter Duct Length and Fittings

Input the length of the duct run and specify the number of fittings, including:

• 90° and 45° elbows
• Wyes
• Transitions
• Dampers

The calculator uses these to estimate equivalent length, which adds resistance to airflow just like straight duct length does.

5. Set Friction Parameters

You may be able to specify:

• Desired friction rate (e.g., 0.08 in. w.g. per 100 ft)
• Or a maximum allowable total pressure drop

More advanced calculators automatically calculate actual friction loss and compare it to your limits.

6. Get the Results

Once all fields are filled, the calculator will output:

• Duct diameter or rectangular dimensions
• Air velocity confirmation
• Total effective duct length
• Warnings if the calculated friction exceeds your limit

Some calculators may also include material multipliers to adjust for different duct types and help fine-tune your design.

Conclusion

HVAC duct sizing plays a pivotal role in the performance, efficiency, and comfort of any heating and cooling system. A well-sized duct system ensures that the right amount of air is delivered to every room, balances pressure throughout the system, and minimizes energy waste, noise, and equipment strain. Whether you’re a homeowner looking to optimize airflow in a single zone or an HVAC professional designing a full residential layout, understanding the principles behind duct sizing is essential.

From learning about airflow (CFM) and friction loss to choosing the right materials and design method, this guide has walked you through the essential elements of proper duct sizing. With the availability of HVAC duct sizing calculators, even those without an engineering background can begin to understand and apply these principles with confidence. These tools help transform complex calculations into straightforward, actionable results—making it easier to plan renovations, identify problems in existing systems, or validate the work of contractors.

In summary, investing the time to understand HVAC duct sizing pays off in the form of better indoor comfort, lower energy bills, and a longer-lasting HVAC system. Use the tools and knowledge shared here to take control of your indoor environment—and breathe easier knowing your ductwork is working efficiently behind the scenes.
